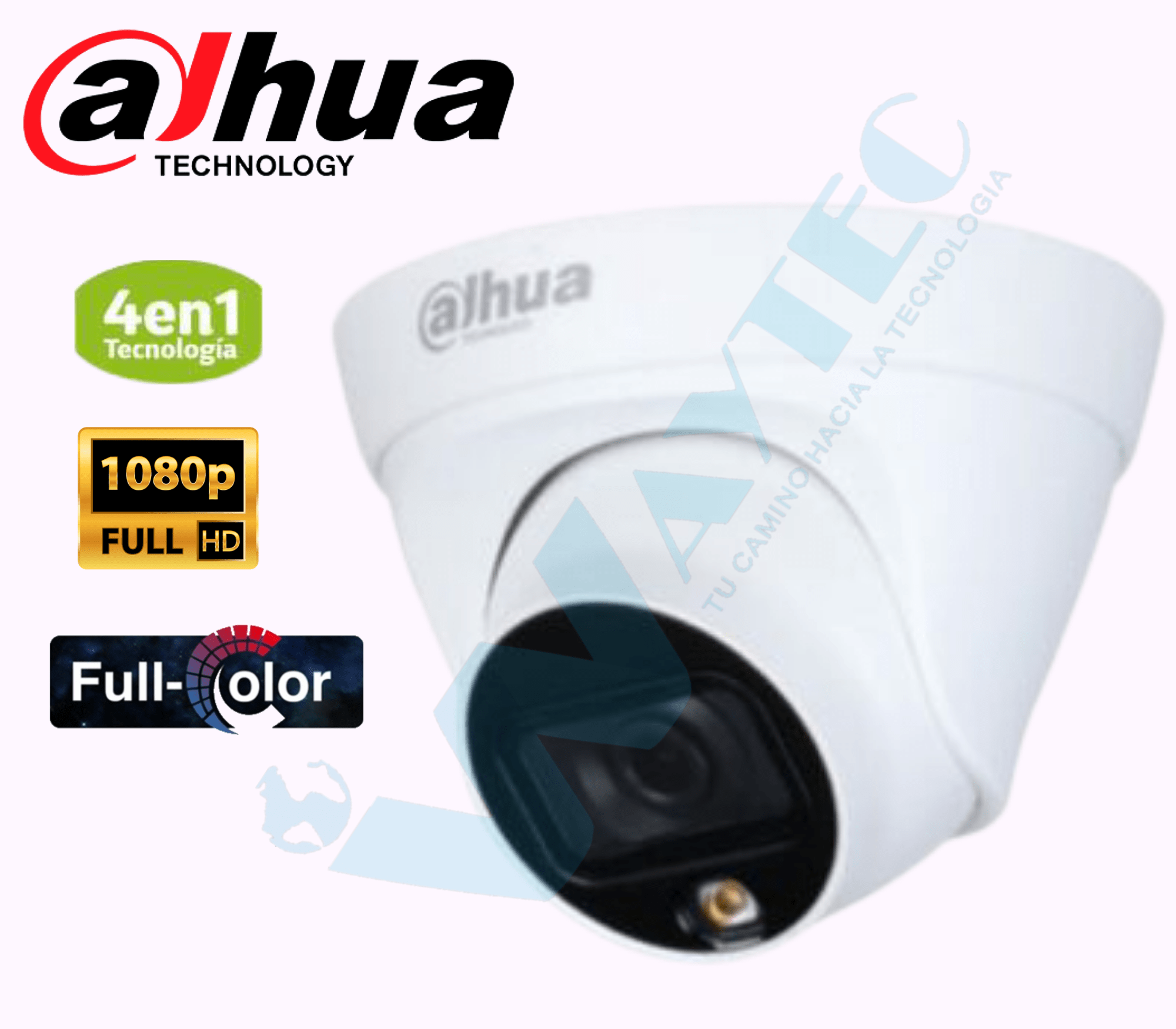

HAC-HDW1209TLQ-LED-0280B LITE – DOMO FHD / 2.8mm / 2MP 1080 CBVS / HDCVI / AHD / TVI

dahua

$23.14

LITE – DOMO FHD / 2.8mm / 2MP 1080 CBVS / HDCVI / AHD / TVI
+ Max 30fps@1080P
+ Angulo de vision H: 106°
+ Max. LUZ LED 20m.
+ IP67
+ Frontal METAL – Cuerpo PLASTICO

Availability:

AGOTADO - Consulta con tu Ejecutivo a Pedido
-> Pedido Local: 2 a 3 Días .
-> Pedido Internacional Importacion: 60 a 70 Días .

AGOTADO - Consulta con tu Ejecutivo a Pedido
-> Pedido Local: 2 a 3 Días .
-> Pedido Internacional Importacion: 60 a 70 Días .

Camera
Image Sensor1/2.8 inch CMOS
Effective Pixels1920 (H) × 1080 (V), 2MP
Scanning SystemProgressive
Electronic Shutter SpeedPAL: 1/25s–1/100000s
NTSC: 1/30s–1/100000s
S/N Ratio>65dB
Minimum Illumination0.01Lux/F1.6, 0Lux white light on
Illumination DistanceDistance up to 20 m (65.61 ft)
Illuminator On/Off ControlAuto; manual
Illuminator Number1
Pan/Tilt/Rotation RangePan: 0°–360°
Tilt: 0°-78
Rotation: 0°–360°
Lens
Lens TypeFixed-focal
Mount TypeM12
Focal Length2.8 mm ;3.6 mm
Max. ApertureF1.6 ;F1.6
Field of View2.8 mm: 126.2° × 106° × 56.5°

(diagonal × horizontal × vertical);
3.6 mm: 103.6° × 86.9° × 46.3°

(diagonal × horizontal × vertical)

Iris TypeFixed iris
Close Focus Distance2.8 mm: 0.6 m (1.97 ft);
3.6 mm: 1.2 m (3.94 ft)
DORI DistanceLensDetectObserveRecognizeIdentify
2.8 mm38.6 m (126.6 ft)15.4 m (50.5 ft)7.7 m

(26.3 ft)

3.9 m

(12.8 ft)

3.6 mm55.2 m (181.1 ft)22.1 m (72.5 ft)11.0 m (36.1 ft)5.5 m

(18.0 ft)

Video
Frame RateCVI:
PAL: 1080P@25fps; 720P@25fps;
NTSC: 1080P@30fps; 720P@30fps;
AHD:
PAL: 1080P@25fps;
NTSC: 1080P@30fps
TVI:
PAL: 1080P@25fps;
NTSC: 1080P@30fps
CVBS:
PAL: 960H;
NTSC: 960H
Resolution1080P (1920 × 1080); 720P (1280× 720); 960H (960 × 576/960 × 480)
BLCBLC/WDR
WDRDWDR
White BalanceAuto; manual
Gain ControlAuto; manual
Noise Reduction2D NR
Smart LightYes
MirrorOff/On
Privacy MaskingOff/On (8 area, rectangle)
Certifications
CertificationsCE (EN55032, EN55024, EN50130-4,EN60950-1)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
Port
Video OutputVideo output choices of CVI/TVI/AHD/CVBS by one BNC port
Audio InterfaceN/A
Power
Power Supply12V ±30% DC
Power ConsumptionMax 3.0W (12V DC, White Light on)
Environment
Operating Temperature-40°C to +60°C (-40°F to 140°F); <95% (non-condensation)
Storage Temperature-40°C to +60°C (-40°F to 140°F); <95% (non-condensation)
Protection GradeIP67
Structure
CasingInner core: metal + plastic
Cover: plastic
Pedestal: plastic
Camera Dimensionsφ97.1 mm × 91.4 mm (φ3.82″ × 3.6″)
Net Weight0.21 Kg (0.46 lb)
Gross Weight0.28 Kg (0.62 lb)
SKU: HAC-HDW1209TLQ-LED-0280B Categorías: , Etiqueta:
Marca

Resolucion

1080P Full HD

Grado de Protección

IP67

Tipo de Lente

Fijo

Distancia IR (Infrarrojos)

Menor a 30m

Material Camara

Metal, Plastico

Full Color

Imágenes a Color Dia/Noche
