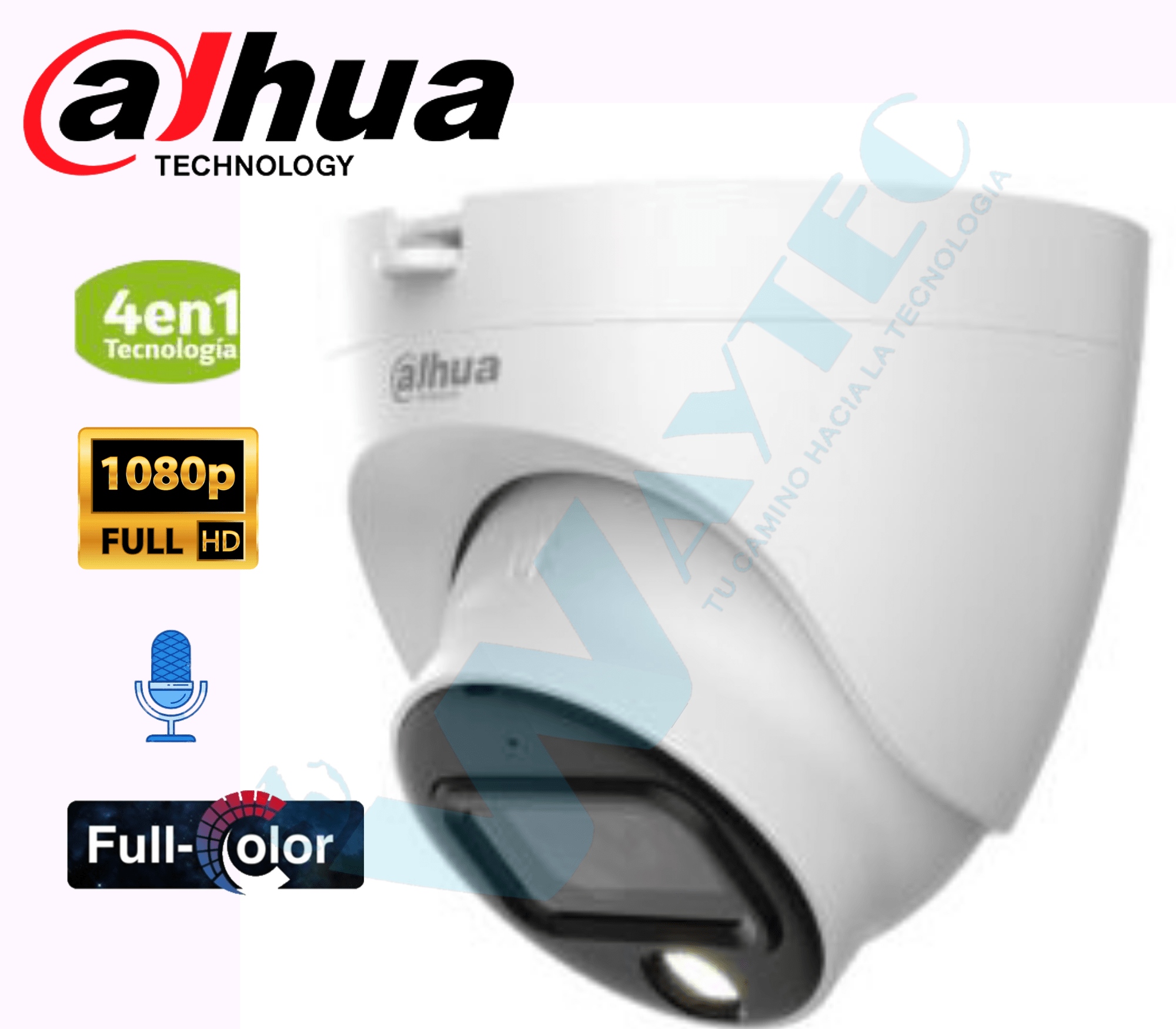

HAC-HDW1239TLQ-A-LED-S2 – LITE – DOMO FHD / 2.8mm / 2.1MP 1080 CBVS / HDCVI / AHD / TVI

dahua

$30.83

LITE – DOMO FHD / 2.8mm / 2.1MP 1080 CBVS / HDCVI / AHD / TVI
+ 24/7 color imaging, Max. 30 fps@1080p
+ Angulo de vision H: 106°
+ Microfono Incorporado
+ Max. LUZ LED 20m.
+ Super Adapt, 130 dB true WDR, 3D NR
+ Frontal METAL – Cuerpo PLASTICO

Última actualización de stock: 27 marzo 2025 - 4:30 pm
Availability:

AGOTADO - Consulta con tu Ejecutivo a Pedido
-> Pedido Local: 2 a 3 Días .
-> Pedido Internacional Importacion: 60 a 70 Días .

AGOTADO - Consulta con tu Ejecutivo a Pedido
-> Pedido Local: 2 a 3 Días .
-> Pedido Internacional Importacion: 60 a 70 Días .

Camera
Image Sensor1/2.8″ CMOS
Max. Resolution1920 (H) × 1080 (V)
Pixel2MP
Scanning SystemProgressive
Electronic Shutter SpeedPAL: 1/25 s–1/100,000 s
NTSC: 1/30 s–1/100,000 s
S/N Ratio> 65 dB
Min. Illumination0.001 Lux/F1.6, 30IRE, 0 Lux LED on
Illumination Distance20 m (65.6 ft)
Illuminator On/Off ControlAuto; manual
Illuminator Number1
Pan/Tilt/Rotation RangePan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°
Lens
Lens TypeFixed lens
Mount TypeM12
Focal Length2.8 mm; 3.6 mm
Max. ApertureF1.6
Field of View2.8 mm: H: 107°; V: 56°; D: 127°
3.6 mm: H: 86°; V: 46°; D: 101°
Iris TypeFixed iris
Close Focus Distance2.8 mm: 0.7 m (2.3 ft)
3.6 mm: 1.1 m (3.6 ft)
DORI DistanceLensDetectObserveRecognizeIdentify
2.8 mm43.9 m

(144 ft)

17.5 m

(57.4 ft)

8.8 m

(28.9 ft)

4.4 m

(14.4 ft)

3.6 mm53.7 m

(176.2 ft)

21.5 m

(70.5 ft)

10.7 m

(35.1 ft)

5.4 m

(17.7 ft)

Video
Frame RateCVI:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
AHD:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
TVI:
PAL: 1080p@25 fps;
NTSC: 1080p@30 fps;
CVBS:
PAL: 960 × 576H;
NTSC: 960 × 480H
Resolution1080p (1920 × 1080); 960H (960 × 576/960 × 480)
BLCBLC/WDR/HLC
WDR130 dB
White BalanceAuto; Area WB
Gain ControlAuto; manual
Noise Reduction3D NR
Smart LightYes
MirrorOff/On
Privacy MaskingOff/On (8 area, rectangle)
Certifications
CertificationsCE (EN55032, EN55024, EN50130-4)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL60950-1+CAN/CSA C22.2 No.60950-1)
Port
Video OutputVideo output choices of CVI/TVI/AHD/CVBS by one BNC port
Audio InputOne channel built-in mic (-A)
Power
Power Supply12 V ±30% DC
Power ConsumptionMax 3.3 W (12 V DC, LED on)
Environment
Operating Temperature–40 °C to +60 °C (–40 °F to 140 °F); < 95% (non-condensation)
Storage Temperature–40 °C to +60 °C (–40 °F to 140 °F); < 95% (non-condensation)
Protection GradeIP67
Structure
CasingMetal inner core + plastic cover + plastic pedestal
Camera Dimensionsφ97.1 mm × 92.9 mm (φ3.82″ × 3.66″)
Net Weight0.22 kg (0.49 lb)
Gross Weight0.28 kg (0.62 lb)
SKU: HAC-HDW1239TLQ-A-LED-S2 Categorías: , Etiqueta:
Marca

Resolucion

1080P Full HD

Audio

Soporta Audio

Grado de Protección

N/A

Tipo de Lente

Fijo

Distancia IR (Infrarrojos)

Menor a 30m

Material Camara

Metal, Plastico

Full Color

Imágenes a Color Dia/Noche

Dispositivos de Audio

Microfono
