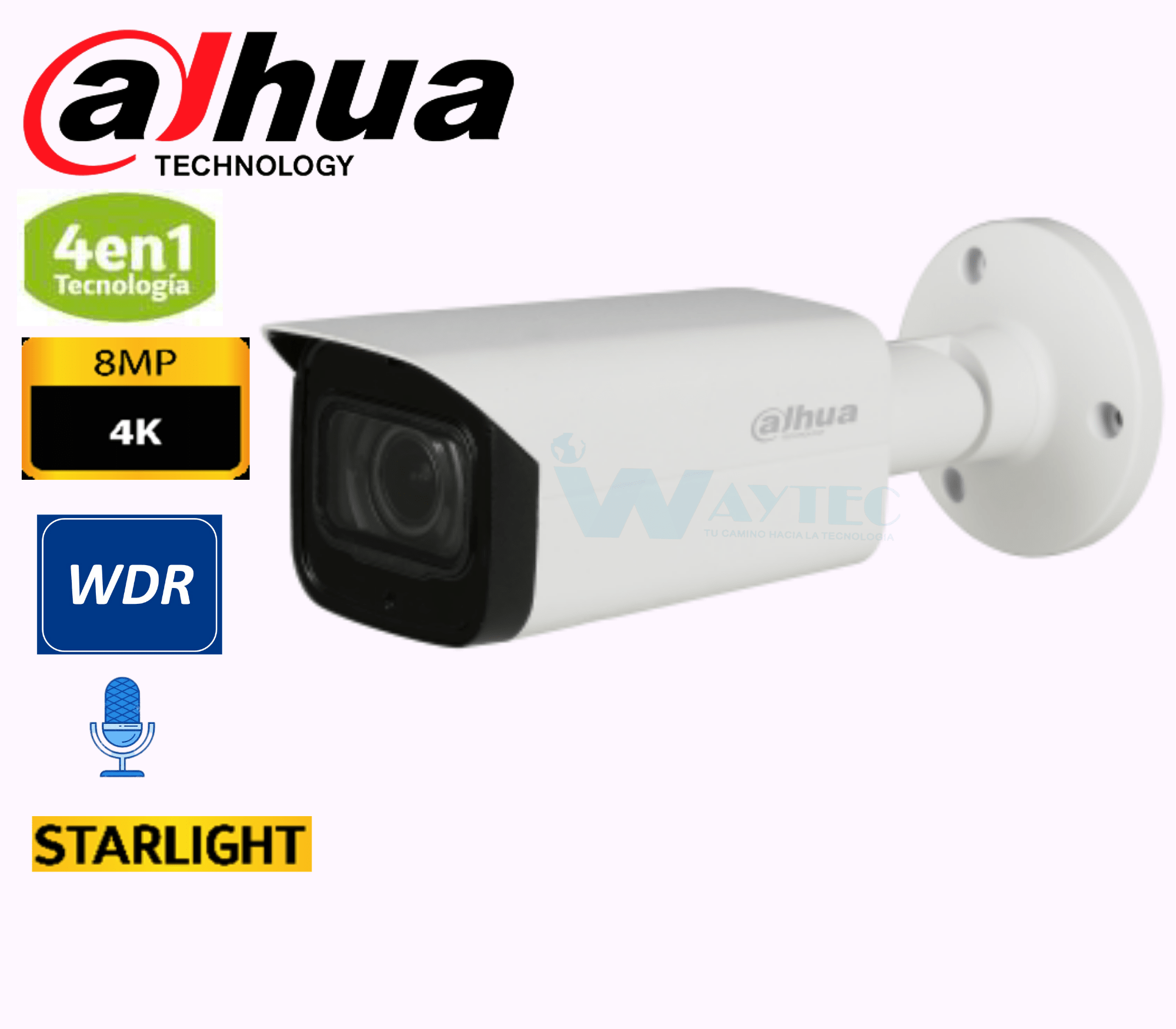

HAC-HFW2802T-A-I8-0360B – PRO – BULLET 4K / 3.6mm / 8MP CBVS / HDCVI / AHD / TVI

dahua

$87.68

PRO – BULLET 4K / 3.6mm / 8MP CBVS / HDCVI / AHD / TVI
+ Starlight, 120dB True WDR, 3DNR
+ 15fps@4K, 20fps@6MP, 25 / 30fps@4MP
+ Interface de Audio Mic. incorporado
+ Max. IR length 80m, Smart IR
+ IP67,

Availability:

AGOTADO - Consulta con tu Ejecutivo a Pedido
-> Pedido Local: 2 a 3 Días .
-> Pedido Internacional Importacion: 60 a 70 Días .

AGOTADO - Consulta con tu Ejecutivo a Pedido
-> Pedido Local: 2 a 3 Días .
-> Pedido Internacional Importacion: 60 a 70 Días .

Camera
Image Sensor1/1.8″ CMOS
Effective Pixels3840(H)×2160(V), 8MP
Scanning SystemProgressive
Electronic Shutter SpeedPAL: 1/4s~1/100,000s

NTSC: 1/3s~1/100,000s

Minimum Illumination0.005Lux/F1.6, 30IRE, 0Lux IR on
S/N RatioMore than 65dB
IR DistanceUp to 80m (260feet)
IR On/Off ControlAuto / Manual
IR LEDs4
Lens
Lens TypeFixed lens / Fixed iris
Mount TypeBoard-in
Focal Length3.6mm (6mm Optional)
Max ApertureF1.6
Angle of ViewH: 87° (55°)
Focus ControlN/A
Close Focus Distance2500mm (6100mm)

98.43” (240.2′)

Pan / Tilt / Rotation
Pan/Tilt/RotationPan: 0° ~ 360°

Tilt: 0° ~ 90°

Rotation: 0° ~ 360°

Video
Resolution8MP (3840×2160)
Frame Rate15fps@4K, 20fps@6MP, 25/30fps@4MP
Video Output1-channel BNC high definition video output / CVBS video output (DIP switch)
Day/NightAuto (ICR) / Manual
OSD MenuMulti-language
BLC ModeBLC / HLC / WDR
WDR120dB
Gain ControlAGC
Noise Reduction2D/3D
White BalanceAuto / Manual
Smart IRAuto / Manual
DORI Distance
Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.
DORI

Definition

Distance
Detect25px/m (8px/ft)3.6mm: 104m(ft)

6mm:164m(ft)

Observe63px/m (19px/ft)3.6mm:42m(ft)

6mm:66m(ft)

Recognize125px/m (38px/ft)3.6mm: 21m(ft)

6mm: 33m(ft)

Identify250px/m (76px/ft)3.6mm:10m(ft)

6mm:16m(ft)

Certifications
CertificationsCE (EN55032, EN55024, EN50130-4)

FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)

UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Interface
Audio Interface1ch in & Built-in Mic
Eelectrical
Power Supply12V DC ±30%  (It is recommended to use a power adapter to supply the power for one camera)
Power ConsumptionMax 11.3W (12V DC, IR on)
Environmental
Operating Conditions-30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH

* Start up should be done at above -30°C (-22°F)

Storage Conditions-30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
Ingress Protection & Vandal ResistanceIP67
Construction
CasingAluminium
Dimensions244mm×90mm×90mm (9.61″×3.5″×23.5″)
Net Weight0.42kg (0.93lb)
Gross Weight0.53kg (l1.17b)
SKU: HAC-HFW2802T-A-I8-0360B Categoría: Etiquetas: ,
Marca

Resolucion

4K Ultra HD

Audio

Soporta Audio

Grado de Protección

IP67

Tipo de Lente

Fijo

Distancia IR (Infrarrojos)

Mayor a 60m

Material Camara

Metal
