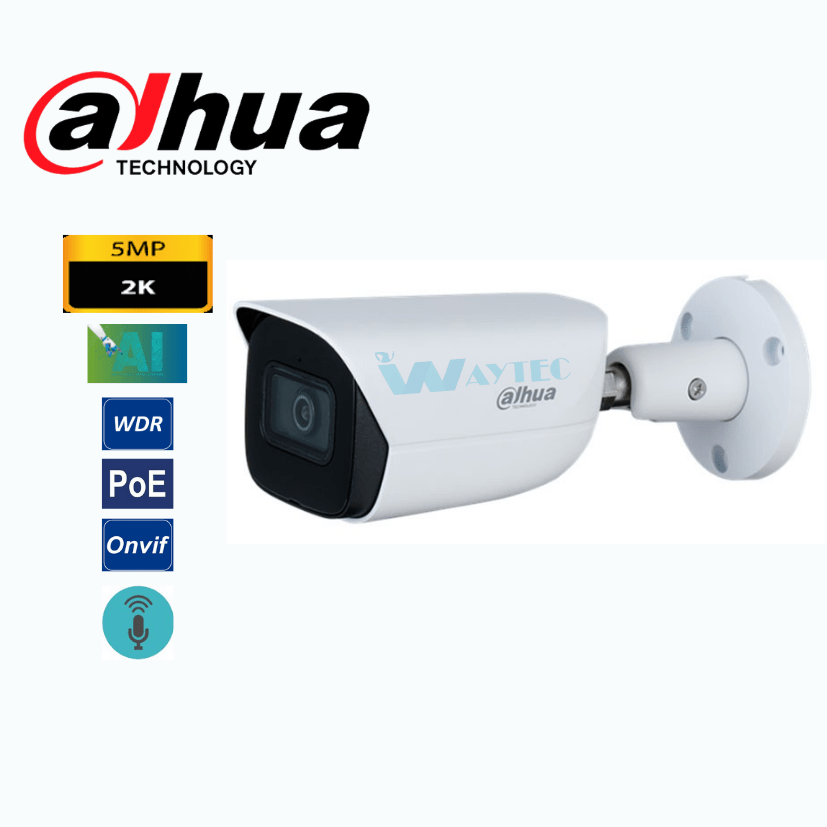

IPC-HFW3541E-SA-0360B | CAMARA BULLET 2K / 3.6MM / 5MP, IR 50M

Camera

Image Sensor

1/2.7”5Megapixel progressive CMOS

Max. Resolution

2592 (H) ×1944 (V)

ROM

128 MB

RAM

512 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100000 s

Min. Illumination

0.005 Lux@F1.6 (Color, 30IRE)

0.0005 Lux@F1.6 (B/W, 30IRE)

0 Lux (Illuminator on)

S/N Ratio

> 56 dB

Illumination Distance

50 m (164.0 ft)

Illuminator On/Off Control

Auto/Manual

Illuminator Number

1 (IR LED)

Pan/Tilt/Rotation Range

Pan: 0°–360°; Tilt: 0°–90°; Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Mount Type

M12

Focal Length

2.8 mm; 3.6 mm; 6 mm

Max. Aperture

F1.6

Field of View

2.8 mm: Horizontal: 98°; vertical: 72°; diagonal: 130°

3.6 mm: Horizontal: 80°; vertical: 59° ; diagonal: 106°

6 mm: Horizontal: 50°; vertical: 36°; diagonal: 64°

Iris Type

Fixed

Close Focus Distance

2.8 mm: 0.9 m (3.0 ft)
3.6 mm: 1.6 m (5.3 ft)
6 mm: 3.2 m (10.5 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8mm

56.0 m

(183.7 ft)

22.4 m

(73.5 ft)

11.2 m

(36.8 ft)

5.6 m

(18.4 ft)

3.6mm

80.0 m

(262.5 ft)

32.0 m

(105.0 ft)

16.0 m

(52.5 ft)

8.0 m

(26.3 ft)

6mm

120.0 m (393.7 ft)

48.0 m

(157.5 ft)

24.0 m

(78.7 ft)

12.0 m (39.4ft)

Professional, Intelligent

Perimeter Protection

Tripwire; intrusion (Recognition of human and vehicle)

Intelligent Search

Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos

Video

Video Compression

H.265; H.264; H.264H; H.264B; MJPEG(only supported

by sub stream)

Smart Codec

Smart H.265+/ Smart H.264+

Video Frame Rate

Main stream (2592 × 1944@1–20 fps)

(2688 × 1520@1–25/30 fps)

sub stream(704 × 576@1–25 fps/704 × 480@1–30 fps)

third stream(1280 × 720@1–25/30 fps)

Stream Capability

3 streams

Resolution

5M (2592 × 1944); 4M (2688 × 1520); 3M (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240)

Bit Rate Control

CBR/VBR

Video Bit Rate

H.264: 3 Kbps–8192 Kbps
H.265: 3 Kbps–8192 Kbps

Day/Night

Auto(ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

White Balance

Auto/natural/street lamp/outdoor/manual/regional custom

Gain Control

Auto/Manual

Noise Reduction

3D DNR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest(RoI)

Yes (4 areas)

Smart Illumination

Yes

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 1920 × 1080 resolution and lower.)

Mirror

Yes

Privacy Masking

4 areas

Audio

Built-in MIC

Yes

Audio Compression

G.711a; G.711Mu; G726

Alarm

Alarm Event

No SD card; SD card full; SD card error; less service time of SD card (smart card supports); network disconnection; IP conflict; illegal access; voltage detection; security exception; motion detection; video tampering; scene changing; intensity change; tripwire; intrusion; SMD

Network

Network

RJ-45 (10/100 Base-T)

SDK and API

Yes

Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; SNMP

Cyber Security

Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade

Interoperability

ONVIF(Profile S/Profile G/Profile T);CGI;P2P;Milestone;

Genetec

Scene Self-adaptation (SSA)

Yes

User/Host

20 (Total bandwidth: 64 M)

Storage

FTP; SFTP; Micro SD Card (support max. 256 G); NAS

Browser

IE: IE8, IE9, IE11

Chrome

Firefox

Management Software

Smart PSS, DSS, DMSS

Mobile Phone

IOS; Android

Certification

Certifications

CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07

Power

Power Supply

12V DC/PoE (802.3af)

Power Consumption

< 5.4W

Environment

Operating Conditions

-40°C to +60°C (-40°F to +140°F)/less than 95%

Storage Conditions

-40°C to +60°C (-40°F to +140°F)

Protection Grade

IP67

Structure

Casing

Metal

Dimensions

192.7 mm × 70.5 mm × 66.4 mm

(7.6”×2.8”×2.6”) (L × W × H)

Net Weight

590 g (1.3lb)

Gross Weight

780 g (1.7lb)
