LITE – DOMO 4K / 2.8mm / 8MP | HAC-HDW1809TLM-A-LED

$66.45

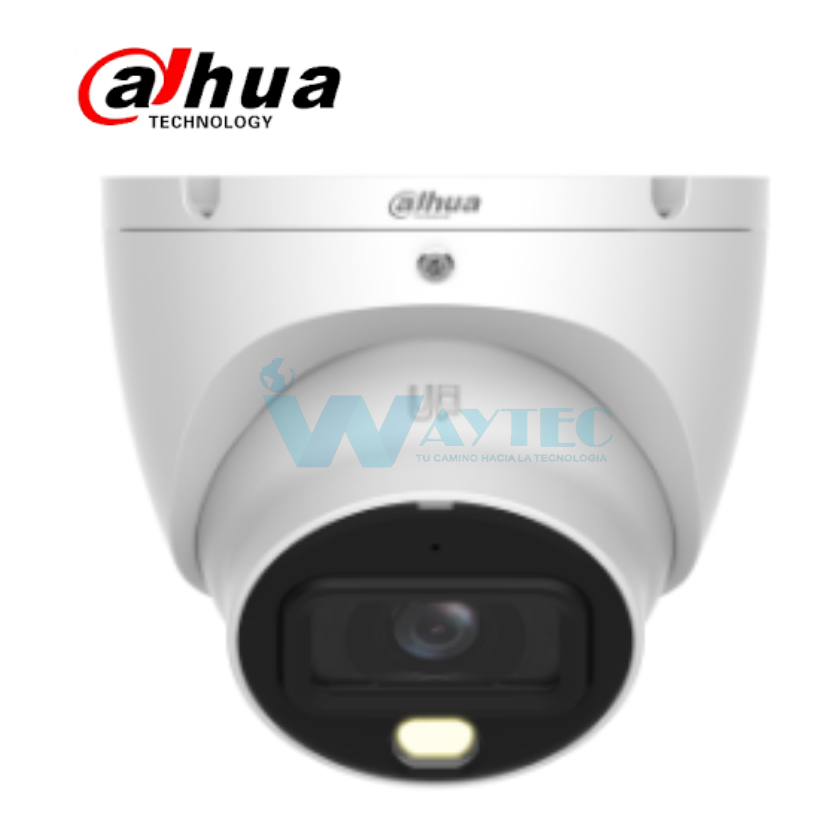

4K Full-Color HDCVI Eyeball Camera

> Max. 15 fps@4K.
> 120 dB true WDR, 3D NR.
> 24/7 color imaging.
> 20 m illumination distance.
> Super Adapt.
> Built-in MIC(-A) .
> 3.6 mm fixed lens (2.8 mm optional).
> CVI/CVBS/AHD/TVI switchable.
> IP67, 12 VDC
Availability:

AGOTADO - Consulta con tu Ejecutivo a Pedido
-> Pedido Local: 2 a 3 Días .
-> Pedido Internacional Importacion: 60 a 70 Días .

AGOTADO - Consulta con tu Ejecutivo a Pedido
-> Pedido Local: 2 a 3 Días .
-> Pedido Internacional Importacion: 60 a 70 Días .

Camera
Pixel8 MP
Image Sensor8MP CMOS
Max. Resolution3840 (H) × 2160 (V)
Scanning SystemProgressive
Electronic Shutter SpeedPAL: 1/3 s–1/100000 s
NTSC: 1/4 s–1/100000 s
Min. Illumination0.001 lux@F1.0 (Color)
0 lux (Illuminator on)
S/N Ratio>65 dB
Illumination Distance20 m (65.62 ft)
Illuminator On/Off ControlAuto/Manual
Illuminator Number1 (Warm light)
Pan/Tilt/Rotation RangePan: 0°–360°
Tilt: 0°–78°
Rotation: 0°–360°
Lens
Lens TypeFixed-focal
Lens MountM12
Focal Length2.8 mm; 3.6 mm
Max. ApertureF1.0
Field of View2.8 mm: H: 106°; V: 55°; D: 125°
3.6 mm: H: 85°; V: 45°; D: 100°
Iris ControlFixed
Close Focus Distance2.8 mm: 2.0 m (6.56 ft)
3.6 mm: 2.8 m (9.19 ft)
DORI DistanceLensDetectObserveRecognizeIdentify
2.8 mm91.0 m

(298.56 ft)

36.4 m

(119.42 ft)

18.2 m

(59.71 ft)

9.1 m

(29.86 ft)

3.6 mm107.6 m

(353.02 ft)

43.0 m

(141.08 ft)

21.5 m

(70.54 ft)

10.8 m

(35.47 ft)

Video
Video Frame RateCVI:
PAL: 4K@15 fps; 5M@25 fps; 4M@25 fps;
NTSC: 4K@15 fps; 5M@25 fps; 4M@30 fps;
AHD:
PAL: 4K@15 fps;
NTSC: 4K@15 fps;
TVI:
PAL: 4K@15 fps;
NTSC: 4K@15 fps;
CVBS:
PAL: 960H;
NTSC: 960H
Resolution4K (3840 × 2160); 5M (2880 × 1620); 4M (2560 × 1440); 960 H (960 × 576/960 × 480)
Day/NightColor
BLCBLC; HLC; WDR; HLC-Pro
WDR120 dB
White BalanceAuto; Area white balance
Gain ControlAuto
Noise Reduction3D NR
Illumination ModeSmart Light
DefogElectronic defog
Digital Zoom4×
MirrorYes
Privacy MaskingOff/On (8 areas, rectangle)
Certification
CertificationsCE (EN55032:2015, EN61000-3-2:2014, EN61000-3-3:2013, EN55024:2010+A1:2015, EN55035:2017, EN50130-4:2011+A1:2014, EN62368-1:2014+A11:2017)
FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)
UL (UL62368-1+CAN/CSA C22.2 No.62368-1-14)
Port
Video OutputVideo output choices of CVI/TVI/AHD/CVBS by one BNC port
Audio InputOne channel built-in MIC
Power
Power Supply12 VDC ± 30% (It is recommended to use a power adapter to supply the power for one camera)
Power ConsumptionMax 5 W (12 VDC, LED on)
Environment
Operating Temperature–40 °C to +60 °C (–40 °F to +140 °F)
Operating Humidity<95% (RH), non-condensing
Storage Temperature–40 °C to +60 °C (–40 °F to +140 °F)
ProtectionIP67
Structure
Casing MaterialMetal
Product Dimensionsφ94.0 mm × 85.7 mm (φ3.70″ × 3.37″)
Packaging Dimensions122 mm × 119 mm × 111 mm (4.80″ × 4.69″ × 4.37″)
Net Weight0.33 kg (0.73 lb)
Gross Weight0.48 kg (1.06 lb)
InstallationWall mount; ceiling mount; vertical pole mount
SKU: HAC-HDW1809TLM-A-LED Categoría: Etiquetas: , , , , ,
