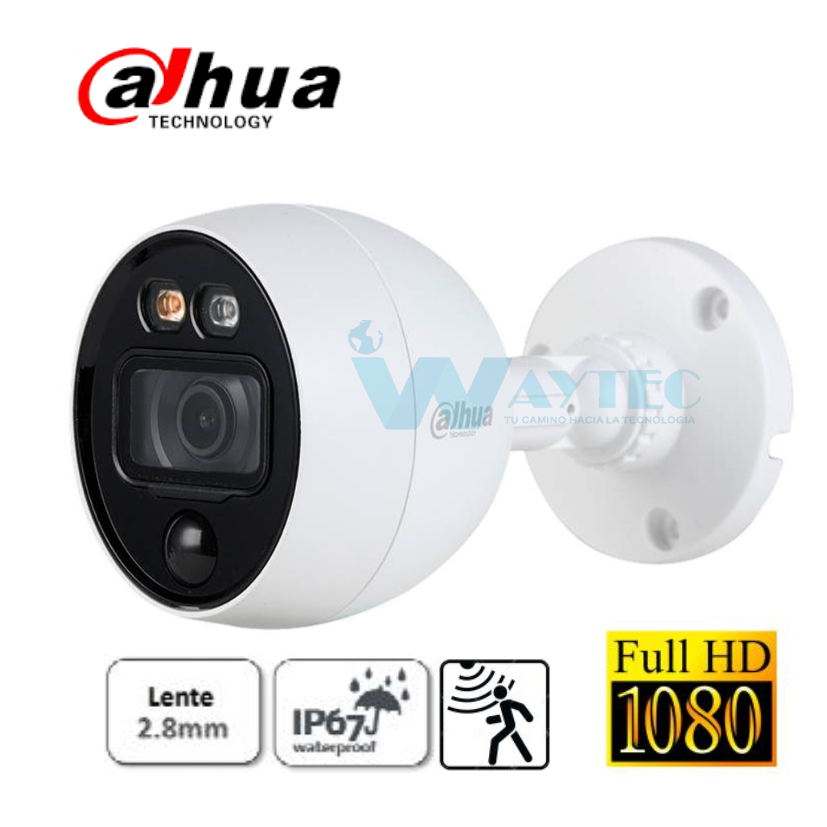

MotionEye – DOMO FHD / 2.8mm / 2MP 1080 CBVS / HDCVI / AHD / TVI – HAC-ME1200B-LED-S4

dahua

$33.02

MotionEye – DOMO FHD / 2.8mm / 2MP 1080 CBVS / HDCVI / AHD / TVI
+ Max 30fps@1080P
+ Rango de detección / ángulo de 10m / 110 °
+ Sensor digital
+ Modo Luz LED blanca alerta.
+ Max. IR 20m, IR inteligente
+ IP67, DC12V
+ Frontal METAL – Cuerpo PLASTICO

Availability:

AGOTADO - Consulta con tu Ejecutivo a Pedido
-> Pedido Local: 2 a 3 Días .
-> Pedido Internacional Importacion: 60 a 70 Días .

AGOTADO - Consulta con tu Ejecutivo a Pedido
-> Pedido Local: 2 a 3 Días .
-> Pedido Internacional Importacion: 60 a 70 Días .

Camera
Image Sensor1/2.7″ CMOS
Effective Pixels1920(H)×1080(V), 2MP
Scanning SystemProgressive
Electronic Shutter SpeedPAL: 1/25~1/100000s

NTSC: 1/30~1/100000s

Minimum Illumination0.02Lux/F2.0(Color), 30IRE, 0Lux IR on
S/N RatioMore than 65dB
IR DistanceUp to 20m (66feet)
IR On/Off ControlAuto / Manual
IR LEDs1
Lens
Lens TypeFixed lens / Fixed iris
Mount TypeBoard-in
Focal Length2.8mm (3.6mm Optional)
Max ApertureF2.0
Angle of ViewH: 112° (88°)

V: 59° (47°)

Focus ControlN/A
Close Focus Distance500mm(900mm)

20”(35”)

DORI Distance
Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.
DORI

Definition

Distance
Detect25px/m

(8px/ft)

2.8mm: 37m(122ft)

3.6mm: 53m(175ft)

Observe63px/m

(19px/ft)

2.8mm: 15m(49ft)

3.6mm: 21m(70ft)

Recognize125px/m

(38px/ft)

2.8mm: 8m(25ft)

3.6mm: 11m(35ft)

Identify250ppm

(76px/ft)

2.8mm: 4m(12ft)

3.6mm: 5m(17ft)

Pan / Tilt / Rotation
Pan/Tilt/RotationPan: 0° ~ 360°

Tilt: 0° ~ 90°

Rotation: 0° ~ 360°

Video
Resolution1080P (1920×1080)
Frame Rate25/30fps@1080P, 25/30fps@720P
Video Output1-channel BNC high definition video output / CVBS

video output (Can switch)

Day/NightAuto (ICR) / Manual
OSD MenuMulti-language
BLC ModeBLC / HLC / DWDR
WDRDWDR
Gain ControlAGC
Noise Reduction2D
White BalanceAuto / Manual
Smart IRAuto / Manual
PIR
DetectionPassive infrared
Detection Range10m, 110°
Alarm PromptWhite light
White Light ModeAlert/Lighting
Installation heightDefualt bracket, wall mount, 2.2-3m
Certifications
CertificationsCE (EN55032, EN55024, EN50130-4)

FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4-2014)

UL (UL60950-1+CAN/CSA C22.2 No.60950-1)

Interface
Audio InterfaceN/A
Eelectrical
Power Supply12V DC ±30%
Power ConsumptionMax 4.3W (12V DC, IR on)
Environmental
Operating Conditions-10°C ~ +50°C (+14°F ~ +122°F) / Less than 95% RH

* Start up should be done at above -10°C (14°F)

Storage Conditions-10°C ~ +50°C (+14°F ~ +122°F) / Less than 95% RH
Ingress Protection &Vandal ResistanceIP67
Construction
CasingAluminium (Front cover) + Plastic (Rear Barrel)
Dimensions146.6mm×72.4mm×83mm (5.77″×2.85″×3.27″)
Net Weight0.23kg (0.51lb)
Gross Weight0.30kg (0.66lb)
SKU: HAC-ME1200B-LED-S4 Categorías: , Etiquetas: , , ,
Grado de Protección

IP67

Distancia IR (Infrarrojos)

Menor a 30m

Material Camara

Metal, Plastico

Resolucion

1080P Full HD

Tipo Camara

Bullet

Tipo de Lente

Fijo

Marca
