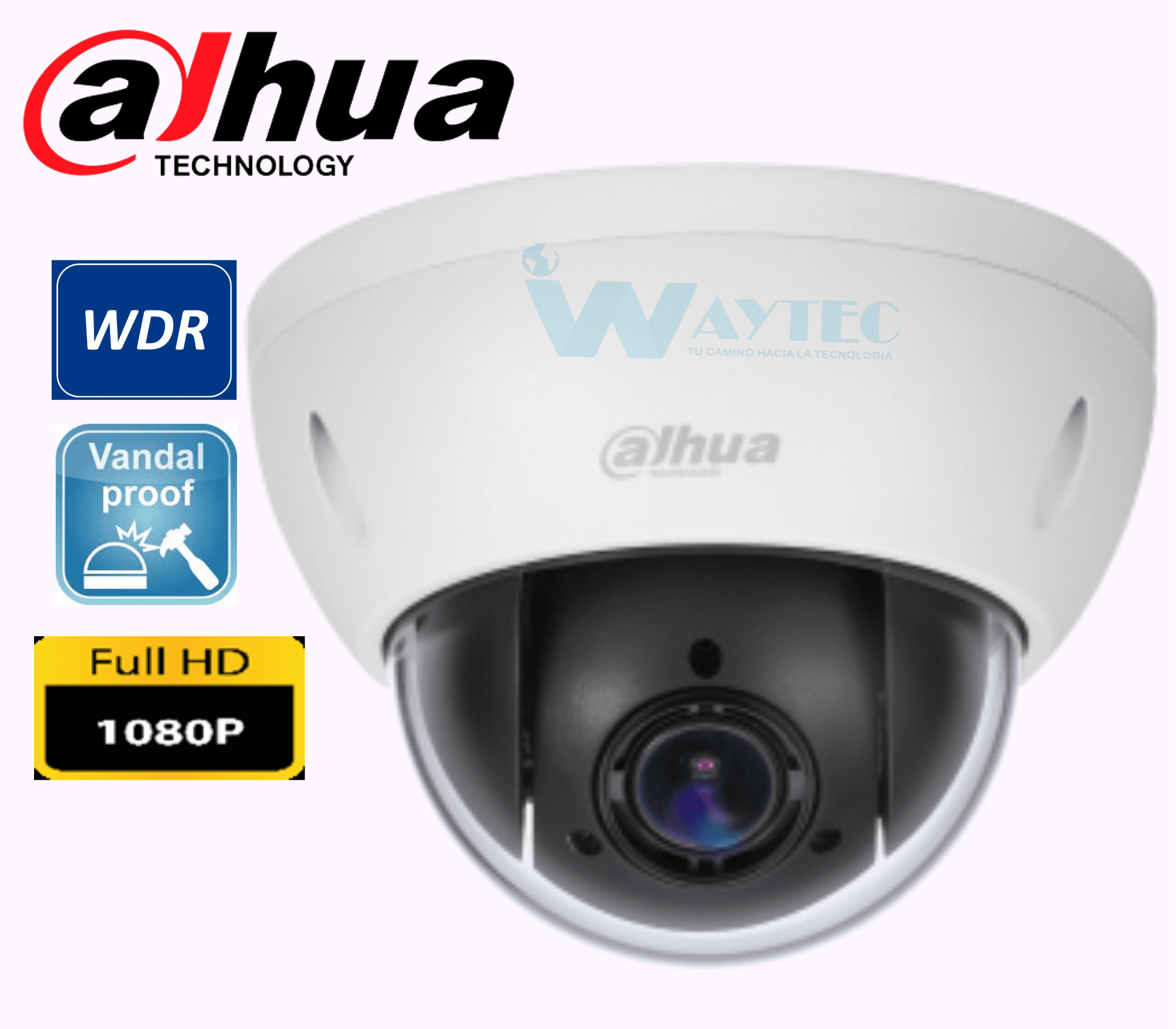

SD22204-GC-LB – DOMO MINI PTZ FHD / HDCVI / 2MP 1080 + 1/2.7” 2Megapixel CMOS

dahua

$84,208.03

DOMO MINI PTZ FHD / HDCVI / 2MP 1080 + 1/2.7” 2Megapixel CMOS
+ 4X zoom Optico
+ 120dB true WDR, 3D DNR
+ Max. 25/30fps@1080P, 25/30/50/60fps@720P
+ IP66, IK10
+ METAL ANTIVANDALICA

Availability:

AGOTADO - Consulta con tu Ejecutivo a Pedido
-> Pedido Local: 2 a 3 Días .
-> Pedido Internacional Importacion: 60 a 70 Días .

AGOTADO - Consulta con tu Ejecutivo a Pedido
-> Pedido Local: 2 a 3 Días .
-> Pedido Internacional Importacion: 60 a 70 Días .

Camera
Image Sensor1/2.8″ STARVIS™ CMOS
Pixel2MP
Max. Resolution1920 (H) x 1080 (V)
ROM16 MB
RAM256 MB
Electronic Shutter Speed1/3 s–1/100000 s
Scanning SystemProgressive
Min. IlluminationColor: 0.05 Lux@F1.6
B/W: 0.005 Lux@F1.6
Lens
Focal Length2.7 mm–11 mm
Max. ApertureF1.6–F2.7
Field of ViewH: 112.5°–30°; V: 54.2°–19.9°; D: 122.3°–40.6°
Optical Zoom4x
Focus ControlAuto/Semi-Auto/Manual
Close Focus Distance0.5 m–1 m (1.64 ft–3.28 ft)
Iris ControlFixed
DORI DistanceDetectObserveRecognizeIdentify
120 m (393.70 ft)48 m (157.48 ft)24 m

(78.74 ft)

12 m (39.37 ft)
PTZ
Pan/Tilt RangePan: 0°–355°

Tilt: 0°–90°

Manual Control SpeedPan: 0.1°–100°/s

Tilt: 0.1°–60°/s

Preset SpeedPan: 100°/s; Tilt: 60°/s
Preset300
Tour8 (up to 32 presets per tour)
Speed AdjustmentSupport
Power-off MemorySupport
Idle MotionPreset/Tour
ProtocolDH-SD
Pelco-P/D (auto recognition)
Video
Resolution1080P (1920 × 1080); 720P (1280 × 720); D1 (704 × 576/704 × 480)
Frame Rate1080P (25/30 fps); 720P (25/30/50/60 fps)
CVI Product Output ModeCVI; TVI; AHD; CVBS
Day/NightSupport
BLCSupport
WDR120 dB
HLCSupport
White BalanceAuto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/Natural/Street lamp
Gain ControlAuto/Manual
Noise Reduction2D/3D
DefogElectronic
Digital Zoom16x
Flip0°/180°
Certification
CertificationsCE: EN55032/EN55024/EN50130-4

FCC: Part15 subpartB, ANSI C63.4-2014

UL: UL60950-1+CAN/CSA C22.2, No.60950-1

Port
Analog Output1 (CVBS/CVI output, BNC port)
RS4851 (baud rate range: 1200 bps–9600 bps)
Power
Power Supply12V DC/1.5A±10%
Power Consumption5W
6W (PTZ on)
Environment
Operating Temperature-30°C to +60°C (-22°F to +140°F)
Operating Humidity≤ 95%RH
ProtectionIP66; IK10; TVS 4000V lightning proof; surge protection; voltage transient protection
Structure
CasingMetal
DimensionsΦ122 mm × 89 mm (4.80″ × 3.50″)
Net Weight0.6 kg (1.32 lb)
Gross Weight0.65 kg (1.43 lb)
SKU: SD22204-GC-LB Categoría: Etiquetas: ,
Marca

Resolucion

1080P Full HD
