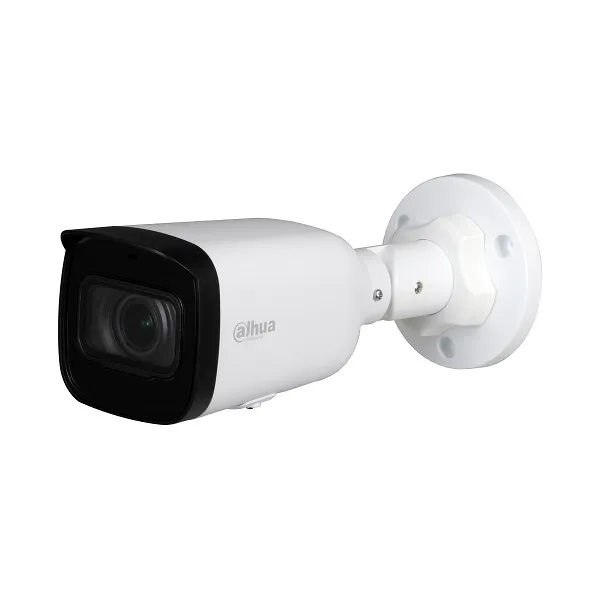

IPC-HFW1431TN-ZS-S4 | CAMARA BULLET IP, 4MP, CMOS 1/3, 2.8 A 12MM, IR 50MT

Camera

Image Sensor

1/3 ”4Megapixel progressive CMOS

Max. Resolution

2688 (H) × 1520 (V)

ROM

128 MB

RAM

128 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100000 s

S/N Ratio

> 56 dB

Min. Illumination

0.03 Lux @ F1.7

Illumination Distance

35 m (114.83 ft)

Illuminator On/Off Control

Auto/Manual

Illuminator Number

2 (IR LED)

Pan/Tilt/Rotation Range

Pan: 0°–360°

Tiltl: 0°–90°

Rotation: 0°–360°

Pan/Tilt/Rotation Range

Lens Type

Motorized vari-focal

Mount Type

φ14

Focal Length

2.8 mm–12 mm

Max. Aperture

F1.7

Field of View

Horizontal: 98°–31°

Vertical: 55°–18°

Diagonal: 116°–36°

Iris Type

Fixed

Close Focus Distance

0.8 m (2.6 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

W

66.0 m

(183.7 ft)

26.4 m

(73.5 ft)

13.2 m

(36.7 ft)

6.6 m

(18.4 ft)

T

200.0 m (656.2 ft)

80.0 m

(262.5 ft)

40.0m

(131.2 ft)

20.0 m

(65.6 ft)

Video

Video Compression

H.265; H.264; H.264B; MJPEG(only supported

by sub stream)

Smart Codec

Smart H.265+/ Smart H.264+

Video Frame Rate

Main Stream:
2688 × 1520 (1 fps–20 fps)
2560 × 1440 (1 fps–25/30 fps)
Sub Stream:
704 × 576 (1 fps–20/25 fps)
704 × 480 (1 fps–20/30 fps)

Stream Capability

2 streams

Resolution

2688 × 1520 (2688 × 1520); 2560 × 1440 (2560 × 1440); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 ×240)

Bit Rate Control

CBR; VBR

Video Bit Rate

H.264: 32 kbps–6144 kbps
H.265: 12 kbps–6144 kbps

Day/Night

Auto(ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

White Balance

Auto/natural/street lamp/outdoor/manual/regional custom

Gain Control

Manual/Auto

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest(RoI)

Yes (4 areas)

Smart Illumination

Yes

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower.)

Mirror

Yes

Privacy Masking

4 areas

Alarm

Alarm Event

Network disconnection; IP conflict; motion detection; video tampering; illegal access; voltage detection; security exception; defocus detection;

Network

Network

RJ-45 (10/100 Base-T)

SDK and API

Yes

Cyber Security

Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade

Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP ; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour

Interoperability

ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P

User/Host

20

Storage

FTP; SFTP; Micro SD card (support max. 256 GB); NAS

Browser

IE
Chrome
Firefox

Management Software

Smart PSS; DSS; DMSS

Mobile Phone

IOS; Android

Certification

Certifications

CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B

Power

Power Supply

12V DC/POE (802.3af)

Power Consumption

< 7.5W (PoE)

Environment

Operating Conditions

-30°C to +55°C (-22°F to +131°F) /less than≤95%

Strorage Conditions

-40°C to +60°C (-40°F to +140°F)

Protection

IP67

Structure

Casing

Metal + plastic

Dimensions

243.5 mm × Φ90.7 mm (9.6″ × Φ3.6″)

Net Weight

0.44 kg (1.0 lb)

Gross Weight

0.69 kg (1.5 lb)
